MV=eMMC+LPDDR3

MX=eMMC+LPDDR4X

GX=UFS+LPDDR4X

一、eMCP

1、eMMC+LPDDR3

料号	ROM 版本	ROM 容量	DRAM 类型	DRAM 容量	封装	速率	应用	生产状态
KMFE60012A-B214	eMMC 5.1	16 GB	LPDDR3	8 Gb	221 FBGA	1866 Mbps	移动端	停产
KMFN60012B-B214	eMMC 5.1	8 GB	LPDDR3	8 Gb	221 FBGA	1866 Mbps	移动端	量产
KMGX6001BA-B514	eMMC 5.1	32 GB	LPDDR3	24 Gb	221 FBGA	1866 Mbps	移动端	量产
KMQE60013B-B318	eMMC 5.1	16 GB	LPDDR3	16 Gb	221 FBGA	1866 Mbps	移动端	量产
KMGP6001BA-B514	eMMC 5.1	32 GB	LPDDR3	16 Gb	221 FBGA	1866 Mbps	移动端	停产
KMQX60013A-B419	eMMC 5.1	32 GB	LPDDR3	16 Gb	221 FBGA	1866 Mbps	移动端	量产
KMRP60014M-B614	eMMC 5.1	64 GB	LPDDR3	32 Gb	221 FBGA	1866 Mbps	移动端	停产
KMGP6001BM-B514	eMMC 5.1	64 GB	LPDDR3	24 Gb	221 FBGA	1866 Mbps	移动端	停产
KMQD60013M-B318	eMMC 5.1	32 GB	LPDDR3	16 Gb	221 FBGA	1866 Mbps	移动端	停产
KMFE60012M-B214	eMMC 5.1	16 GB	LPDDR3	8 Gb	221 FBGA	1866 Mbps	移动端	停产
KMFN60012M-B214	eMMC 5.1	8 GB	LPDDR3	8 Gb	221 FBGA	1866 Mbps	移动端	停产
KMQE60013M-B318	eMMC 5.1	16 GB	LPDDR3	16 Gb	221 FBGA	1866 Mbps	移动端	停产

VendorPN	Package	ROM Type	ROM Size	RAM Type	RAM Size
KMGX6001BA_B514	221_FBGA	eMMC	32GB	LPDDR3	24Gb
KMF5X0005C_B211	221-FBGA	eMMC	4GB	LPDDR3	4Gb
KMQ8X000SA_B414	221-FBGA	eMMC	16GB	LPDDR3	8Gb
KMQ5X000SA_B315	221-FBGA	eMMC	4GB	LPDDR3	8Gb
KMQ7X000SA_B315	221-FBGA	eMMC	8GB	LPDDR3	8Gb
KMRP60014M_B614	FBGA_221	eMMC	64GB	LPDDR3	32Gb
KMQX60013M_B419	221_FBGA	eMMC	32GB	LPDDR3	16Gb
KMGP6001BM_B514	221_FBGA	eMMC	64GB	LPDDR3	24Gb
KMQD60013M_B318	221_FBGA	eMMC	32GB	LPDDR3	16Gb
KMQNW000SM_B316	221-FBGA	eMMC	8GB	LPDDR3	8Gb
KMR820001M_B609	221-FBGA	eMMC	16GB	LPDDR3	16Gb
KMRNW0001M_B509(MLC)	221-FBGA	eMMC	8GB	LPDDR3	16Gb
KMR7X0001M_B511	221-FBGA	eMMC	8GB	LPDDR3	16Gb
KMGD6001BM_B421	221-FBGA	eMMC	32GB	LPDDR3	24Gb
KMQ31000SM_B417	221-FBGA	eMMC	16GB	LPDDR3	8Gb
KMQ72000SM_B316	221-FBGA	eMMC	8GB	LPDDR3	8Gb
KMR310001M_B611	221-FBGA	eMMC	16GB	LPDDR3	16Gb
KMRD60014M_B512	221-FBGA	eMMC	32GB	LPDDR3	32Gb
KMFN60012M_B214	221-FBGA	eMMC	8GB	LPDDR3	8Gb
KMRH60014A_B614	221-FBGA	eMMC	64GB	LPDDR3	32Gb
KMGE6001BM_B421	221-FBGA	eMMC	16GB	LPDDR3	24Gb
KMR4Z0001A_B803	221-FBGA	eMMC	32GB	LPDDR3	16Gb
KMRE1000BM_B512	221-FBGA	eMMC	16GB	LPDDR3	24Gb
KMQ82000SM_B418	221-FBGA	eMMC	16GB	LPDDR3	8Gb
KMR31000BM_B611	221-FBGA	eMMC	16GB	LPDDR3	24Gb
KMFE60012M_B214	221-FBGA	eMMC	16GB	LPDDR3	8Gb
KMQN1000SM_B316	221-FBGA	eMMC	8GB	LPDDR3	8Gb
KMQE60013M_B318	221-FBGA	eMMC	16GB	LPDDR3	16Gb
KMGX6001BM_B514	221-FBGA	eMMC	32GB	LPDDR3	24Gb
KMRX60014M_B614	221-FBGA	eMMC	32GB	LPDDR3	32Gb
KMQ310006A_B419	221-FBGA	eMMC	16GB	LPDDR3	12Gb
KMRH60014M_B614	221-FBGA	eMMC	64GB	LPDDR3	32Gb
KMQN10006B_B318	221-FBGA	eMMC	8GB	LPDDR3	12Gb
KMQN10006M_B318	221-FBGA	eMMC	8GB	LPDDR3	12Gb
KMQ310006B_B419	221-FBGA	eMMC	16GB	LPDDR3	12Gb
KMRV50014M_B809	221-FBGA	eMMC	128GB	LPDDR3	32Gb
KMR21000BM_B809	221-FBGA	eMMC	32GB	LPDDR3	24Gb
KMQX10013M_B419	221-FBGA	eMMC	32GB	LPDDR3	16Gb
KMQ310013M_B419	221-FBGA	eMMC	16GB	LPDDR3	16Gb
KMFNX0012M_B214	221-FBGA	eMMC	8GB	LPDDR3	8Gb
KMFN10012M_B214	221-FBGA	eMMC	8GB	LPDDR3	8Gb
KMFE10012M_B214	221-FBGA	eMMC	16GB	LPDDR3	8Gb
KMQN10013M_B318	221-FBGA	eMMC	8GB	LPDDR3	16Gb
KMQ4Z0013M_B809	221-FBGA	eMMC	32GB	LPDDR3	16Gb
KMQE10013M_B318	221-FBGA	eMMC	16GB	LPDDR3	16Gb
KMR31000BA_B614	221-FBGA	eMMC	16GB	LPDDR3	24Gb
KMRX1000BM_B614	221-FBGA	eMMC	32GB	LPDDR3	24Gb
KMRC10014M_B809	221-FBGA	eMMC	64GB	LPDDR3	32Gb
KMF720012M_B214	221-FBGA	eMMC	8GB	LPDDR3	8Gb
KMRX10014M_B614	221-FBGA，11.5x13x1.2	eMMC	32GB	LPDDR3	32Gb
KMQ820013M_B419	221-FBGA	eMMC	16GB	LPDDR3	16Gb
KMF820012M_B305	221-FBGA	eMMC	16GB	LPDDR3	8Gb
KMRC1000BM_B809	221-FBGA	eMMC	64GB	LPDDR3	24Gb
KMFJ20007M_B214	221-FBGA	eMMC	4GB	LPDDR3	6Gb
KMFJ20005A_B213	221FBGA	eMMC	4GB	LPDDR3	4Gb
KMF310012M_B305	221_FBGA	eMMC	16GB	LPDDR3	8Gb

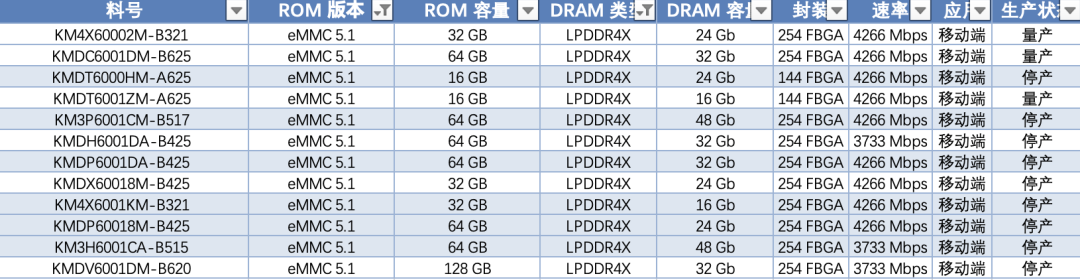

2、eMMC+LPDDR4X

料号	ROM 版本	ROM 容量	DRAM 类型	DRAM 容量	封装	速率	应用	生产状态
KM4X60002M-B321	eMMC 5.1	32 GB	LPDDR4X	24 Gb	254 FBGA	4266 Mbps	移动端	量产
KMDC6001DM-B625	eMMC 5.1	64 GB	LPDDR4X	32 Gb	254 FBGA	4266 Mbps	移动端	量产
KMDT6000HM-A625	eMMC 5.1	16 GB	LPDDR4X	24 Gb	144 FBGA	4266 Mbps	移动端	停产
KMDT6001ZM-A625	eMMC 5.1	16 GB	LPDDR4X	16 Gb	144 FBGA	4266 Mbps	移动端	量产
KM3P6001CM-B517	eMMC 5.1	64 GB	LPDDR4X	48 Gb	254 FBGA	4266 Mbps	移动端	停产
KMDH6001DA-B425	eMMC 5.1	64 GB	LPDDR4X	32 Gb	254 FBGA	3733 Mbps	移动端	停产
KMDP6001DA-B425	eMMC 5.1	64 GB	LPDDR4X	32 Gb	254 FBGA	4266 Mbps	移动端	停产
KMDX60018M-B425	eMMC 5.1	32 GB	LPDDR4X	24 Gb	254 FBGA	4266 Mbps	移动端	停产
KM4X6001KM-B321	eMMC 5.1	32 GB	LPDDR4X	16 Gb	254 FBGA	4266 Mbps	移动端	停产
KMDP60018M-B425	eMMC 5.1	64 GB	LPDDR4X	24 Gb	254 FBGA	4266 Mbps	移动端	停产
KM3H6001CA-B515	eMMC 5.1	64 GB	LPDDR4X	48 Gb	254 FBGA	3733 Mbps	移动端	停产
KMDV6001DM-B620	eMMC 5.1	128 GB	LPDDR4X	32 Gb	254 FBGA	3733 Mbps	移动端	停产

VendorPN	Package	ROM Type	ROM Size	RAM Type	RAM Size
KMWX10016M-B619	254-FBGA	eMMC	32GB	LPDDR4X	32Gb
KMDH6001DM_B422	254-FBGA	eMMC	64GB	LPDDR4X	32Gb
KM3H6001CM-B515	254-FBGA	eMMC	64GB	LPDDR4X	48Gb
KMDP6001DB-B425	254-FBGA	eMMC	64GB	LPDDR4X	32Gb
KM3V6001CB-B708	254-FBGA	eMMC	128GB	LPDDR4X	48Gb
KMDV6001DB-B625	254-FBGA	eMMC	128GB	LPDDR4X	32Gb
KM3V6001CM_B705	254-FBGA	eMMC	128GB	LPDDR4X	48Gb
KMDH6001DA_B422	254-FBGA	eMMC	64GB	LPDDR4X	32Gb
KM3H6001CA_B515	254-FBGA	eMMC	64GB	LPDDR4X	48Gb
KMDV6001DM_B620	254-FBGA	eMMC	128GB	LPDDR4X	32Gb
KMDC6001DM-B625	254-FBGA	eMMC	64GB	LPDDR4X	32Gb
KMDP6001DA-B425	254-FBGA	eMMC	64GB	LPDDR4X	48Gb
KMDD60018M_B320	254-FBGA	eMMC	32GB	LPDDR4X	24Gb
KM3P6001CM-B517	254-FBGA	eMMC	64GB	LPDDR4X	48Gb
KMDX60018M_B425	254-FBGA	eMMC	32GB	LPDDR4X	24Gb
KMDX6001DM_B422	254-FBGA	eMMC	32GB	LPDDR4X	32Gb
KM3V6001CA_B708	254-FBGA	eMMC	128GB	LPDDR4X	48Gb
KMDV6001DA_B620	254-FBGA	eMMC	128GB	LPDDR4X	32Gb
KMDD6001DM_B320	254-FBGA	eMMC	32GB	LPDDR4X	32Gb
KMDP60018M_B425	254-FBGA	eMMC	64GB	LPDDR4X	24Gb
KM4X6001KM_B321	254-FBGA	eMMC	32GB	LPDDR4X	16Gb
KMDP6001DA_B425	254-FBGA	eMMC	64GB	LPDDR4X	32Gb

二、uMCP

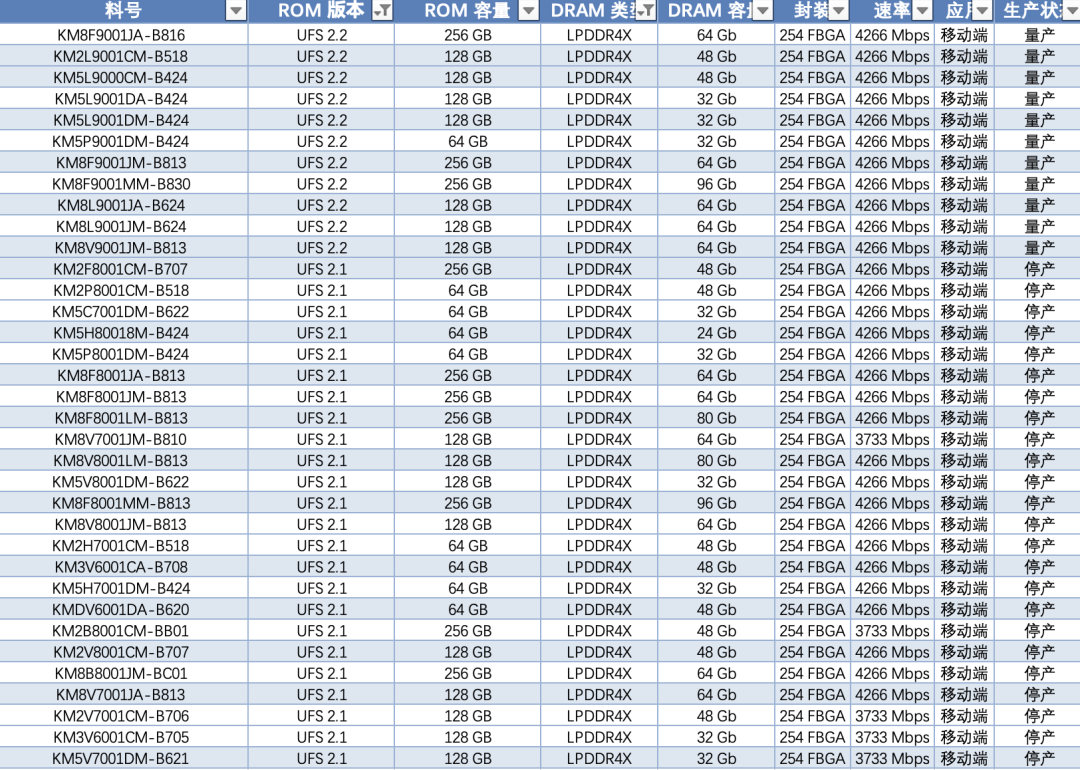

1、UFS+LPDDR4X

料号	ROM 版本	ROM 容量	DRAM 类型	DRAM 容量	封装	速率	应用	生产状态
KM8F9001JA-B816	UFS 2.2	256 GB	LPDDR4X	64 Gb	254 FBGA	4266 Mbps	移动端	量产
KM2L9001CM-B518	UFS 2.2	128 GB	LPDDR4X	48 Gb	254 FBGA	4266 Mbps	移动端	量产
KM5L9000CM-B424	UFS 2.2	128 GB	LPDDR4X	48 Gb	254 FBGA	4266 Mbps	移动端	量产
KM5L9001DA-B424	UFS 2.2	128 GB	LPDDR4X	32 Gb	254 FBGA	4266 Mbps	移动端	量产
KM5L9001DM-B424	UFS 2.2	128 GB	LPDDR4X	32 Gb	254 FBGA	4266 Mbps	移动端	量产
KM5P9001DM-B424	UFS 2.2	64 GB	LPDDR4X	32 Gb	254 FBGA	4266 Mbps	移动端	量产
KM8F9001JM-B813	UFS 2.2	256 GB	LPDDR4X	64 Gb	254 FBGA	4266 Mbps	移动端	量产
KM8F9001MM-B830	UFS 2.2	256 GB	LPDDR4X	96 Gb	254 FBGA	4266 Mbps	移动端	量产
KM8L9001JA-B624	UFS 2.2	128 GB	LPDDR4X	64 Gb	254 FBGA	4266 Mbps	移动端	量产
KM8L9001JM-B624	UFS 2.2	128 GB	LPDDR4X	64 Gb	254 FBGA	4266 Mbps	移动端	量产
KM8V9001JM-B813	UFS 2.2	128 GB	LPDDR4X	64 Gb	254 FBGA	4266 Mbps	移动端	量产
KM2F8001CM-B707	UFS 2.1	256 GB	LPDDR4X	48 Gb	254 FBGA	4266 Mbps	移动端	停产
KM2P8001CM-B518	UFS 2.1	64 GB	LPDDR4X	48 Gb	254 FBGA	4266 Mbps	移动端	停产
KM5C7001DM-B622	UFS 2.1	64 GB	LPDDR4X	32 Gb	254 FBGA	4266 Mbps	移动端	停产
KM5H80018M-B424	UFS 2.1	64 GB	LPDDR4X	24 Gb	254 FBGA	4266 Mbps	移动端	停产
KM5P8001DM-B424	UFS 2.1	64 GB	LPDDR4X	32 Gb	254 FBGA	4266 Mbps	移动端	停产
KM8F8001JA-B813	UFS 2.1	256 GB	LPDDR4X	64 Gb	254 FBGA	4266 Mbps	移动端	停产
KM8F8001JM-B813	UFS 2.1	256 GB	LPDDR4X	64 Gb	254 FBGA	4266 Mbps	移动端	停产
KM8F8001LM-B813	UFS 2.1	256 GB	LPDDR4X	80 Gb	254 FBGA	4266 Mbps	移动端	停产
KM8V7001JM-B810	UFS 2.1	128 GB	LPDDR4X	64 Gb	254 FBGA	3733 Mbps	移动端	停产
KM8V8001LM-B813	UFS 2.1	128 GB	LPDDR4X	80 Gb	254 FBGA	4266 Mbps	移动端	停产
KM5V8001DM-B622	UFS 2.1	128 GB	LPDDR4X	32 Gb	254 FBGA	4266 Mbps	移动端	停产
KM8F8001MM-B813	UFS 2.1	256 GB	LPDDR4X	96 Gb	254 FBGA	4266 Mbps	移动端	停产
KM8V8001JM-B813	UFS 2.1	128 GB	LPDDR4X	64 Gb	254 FBGA	4266 Mbps	移动端	停产
KM2H7001CM-B518	UFS 2.1	64 GB	LPDDR4X	48 Gb	254 FBGA	4266 Mbps	移动端	停产
KM3V6001CA-B708	UFS 2.1	64 GB	LPDDR4X	48 Gb	254 FBGA	4266 Mbps	移动端	停产
KM5H7001DM-B424	UFS 2.1	64 GB	LPDDR4X	32 Gb	254 FBGA	4266 Mbps	移动端	停产
KMDV6001DA-B620	UFS 2.1	64 GB	LPDDR4X	48 Gb	254 FBGA	4266 Mbps	移动端	停产
KM2B8001CM-BB01	UFS 2.1	256 GB	LPDDR4X	48 Gb	254 FBGA	3733 Mbps	移动端	停产
KM2V8001CM-B707	UFS 2.1	128 GB	LPDDR4X	48 Gb	254 FBGA	4266 Mbps	移动端	停产
KM8B8001JM-BC01	UFS 2.1	256 GB	LPDDR4X	64 Gb	254 FBGA	4266 Mbps	移动端	停产
KM8V7001JA-B813	UFS 2.1	128 GB	LPDDR4X	64 Gb	254 FBGA	4266 Mbps	移动端	停产
KM2V7001CM-B706	UFS 2.1	128 GB	LPDDR4X	48 Gb	254 FBGA	3733 Mbps	移动端	停产
KM3V6001CM-B705	UFS 2.1	128 GB	LPDDR4X	32 Gb	254 FBGA	3733 Mbps	移动端	停产
KM5V7001DM-B621	UFS 2.1	128 GB	LPDDR4X	32 Gb	254 FBGA	3733 Mbps	移动端	停产

VendorPN	Package	ROM Type	ROM Size	RAM Type	RAM Size
KM2V7001CM_B706	254 FBGA	UFS	128GB	LPDDR4X	48Gb
KM81A001MM-BC11	254-FBGA	UFS	512GB	LPDDR4X	96Gb
KM8L9001JA-B624	254FBGA	UFS	128GB	LPDDR4X	8GB
KM2V8001CM_B707	FBGA_254	UFS	128GB	LPDDR4X	48Gb
KM2B8001CM_BB01	254 FBGA	UFS	256GB	LPDDR4X	48Gb
KM5V7001DM_B621	254 FBGA	UFS	128GB	LPDDR4X	32Gb
KM8V9001JM_B813	254-FBGA	UFS	128GB	LPDDR4X	64Gb
KM5L9001DA-B424	254-FBGA	UFS	128GB	LPDDR4X	32Gb
KM8B8001JM_BC01	254 FBGA	UFS	256GB	LPDDR4X	64Gb
KM8F9001MM_B830	254-FBGA	UFS	256GB	LPDDR4X	96Gb
KM5L9000CM-B424	254-FBGA	UFS	128GB	LPDDR4X	48Gb
KM8V7001JM_B810	254 FBGA	UFS	128GB	LPDDR4X	64Gb
KM8F9001MM-B830	254-FBGA	UFS	256GB	LPDDR4X	96Gb
KM8V7001JM-B810	254-FBGA	UFS	128GB	LPDDR4X	64Gb
KM2H7001CM_B518	254-FBGA	UFS	64GB	LPDDR4X	48Gb
KM5H7001DM_B424	254 FBGA	UFS	64GB	LPDDR4X	32Gb
KM8V8001JM_B813	254-FBGA	UFS	128GB	LPDDR4X	64Gb
KM8L9001JM-B624	254-FBGA	UFS	128GB	LPDDR4X	64Gb
KM5P9001DM-B424	254-FBGA	UFS	64GB	LPDDR4X	32Gb
KM8AA001JM-B623	254-FBGA	UFS	256GB	LPDDR4X	64Gb
KM8F9001JM-B813	254-FBGA	UFS	256GB	LPDDR4X	64Gb
KM2L9001CM-B518	254-FBGA	UFS	128GB	LPDDR4X	48Gb
KM8V9001JM-B813	254-FBGA	UFS	128GB	LPDDR4X	64Gb
KM8F8001JM-B813	254-FBGA	UFS	256GB	LPDDR4X	64Gb
KM8F8001MM-B813	254-FBGA	UFS	256GB	LPDDR4X	96Gb
KM5L9001DM-B424	254 FBGA	UFS	128GB	LPDDR4X	32Gb
KM5V8001DM_B622	254Ball-FBGA	UFS	128GB	LPDDR4X	4GB
KM5P8001DM_B424	254-FBGA	UFS	64GB	LPDDR4X	32Gb
KM5C7001DM-B622	254-FBGA	UFS	64GB	LPDDR4X	32Gb
KM5V8001DM-B622	254-FBGA	UFS	128GB	LPDDR4X	32Gb

2、UFS+LPDDR5

料号	ROM 版本	ROM 容量	DRAM 类型	DRAM 容量	封装	速率	应用	生产状态
KMAIA001PM-B819	UFS 3.1	256 GB	LPDDR5	64 Gb	297 FBGA	6400 Mbps	移动端	量产
KMJIA001RM-BC07	UFS 3.1	256 GB	LPDDR5	96 Gb	297 FBGA	6400 Mbps	移动端	量产
KMJS9001RM-BG01	UFS 3.1	256 GB	LPDDR5	96 Gb	297 FBGA	6400 Mbps	移动端	量产
KMAG9001PM-B814	UFS 3.1	128 GB	LPDDR5	64 Gb	297 FBGA	6400 Mbps	移动端	量产
KMAS9001PM-BC02	UFS 3.1	256 GB	LPDDR5	64 Gb	297 FBGA	6400 Mbps	移动端	量产

All eMCP、uMCP

Part #	Type	Density	Package Dimensions	Ball Count
KMSJS000KM-B308	eMCP eMMC 4.41/LPDDR1	4GB+4Gb	11.5x13x1.0	153Ball
KMSJS000KA-B308	eMCP eMMC 4.41/LPDDR1	4GB+4Gb	11.5x13x1.0	153Ball
KMS5U000KM-B308	eMCP eMMC 4.41/LPDDR1	4GB+4Gb	11.5x13x1.0	153Ball
KMRX60014M-B614 8953-12x14	eMCP eMMC 5.1/ LPDDR3	32GB+32Gb	11.5x13.0x1.1	221Ball
KMRX60014M-B614	eMCP eMMC 5.1/ LPDDR3	32GB+32Gb	11.5x13.0x1.1	221Ball
KMRX10014M-B614 8953-12x14	eMCP eMMC 5.1/ LPDDR3	32GB+32Gb	11.5x13.0x1.2	221Ball
KMRX10014M-B614	eMCP eMMC 5.1/ LPDDR3	32GB+32Gb	11.5x13.0x1.2	221Ball
KMRX1000BM-B614 8953-12x14	eMCP eMMC 5.1/ LPDDR3	32GB+24Gb	11.5x13.0x1.2	221Ball
KMRX1000BM-B614	eMCP eMMC 5.1/ LPDDR3	32GB+24Gb	11.5x13.0x1.1	221Ball
KMRV50014M-B809	eMCP eMMC 5.1/ LPDDR3	128GB+32Gb	11.5x13.0x1.4	221Ball
KMRP60014M-B614 8953-12x14	eMCP eMMC 5.1/ LPDDR3	64GB+32Gb	11.5x13.0x1.2	221Ball
KMRP60014M-B614	eMCP eMMC 5.1/ LPDDR3	64GB+32Gb	11.5x13.0x1.2	221Ball
KMRH60014M-B614	eMCP eMMC 5.1/ LPDDR3	64GB+32Gb	11.5x13.0x1.2	221Ball
KMRH60014A-B614 8953-12x14	eMCP eMMC 5.1/ LPDDR3	64GB+32Gb	11.5x13.0x1.2	221Ball
KMRH60014A-B614	eMCP eMMC 5.1/ LPDDR3	64GB+32Gb	11.5x13.0x1.2	221Ball
KMRE1000BM-B512	eMCP eMMC 5.1/ LPDDR3	16GB+24Gb	11.5x13.0x1.0	221Ball
KMRD60014M-B512 8953-12x14	eMCP eMMC 5.1/ LPDDR3	32GB+32Gb	11.5x13.0x1.1	221Ball
KMRD60014M-B512	eMCP eMMC 5.1/ LPDDR3	32GB+32Gb	11.5x13.0x1.1	221Ball
KMRC10014M-B809 8953-12x14	eMCP eMMC 5.1/ LPDDR3	64GB+32Gb	11.5x13.0x1.2	221Ball
KMRC10014M-B809	eMCP eMMC 5.1/ LPDDR3	64GB+32Gb	11.5x13.0x1.2	221Ball
KMRC1000BM-B809	eMCP eMMC 5.1/ LPDDR3	64GB+24Gb	11.5x13.0x1.2	221Ball
KMR820001M-B609	eMCP eMMC 5.0/ LPDDR3	16GB+16Gb	11.5x13x1.2	221Ball
KMR4Z0001A-B803	eMCP eMMC 5.0/ LPDDR3	32GB+16Gb	11.5x13x1.4	221Ball
KMR31000BM-B614	eMCP eMMC 5.0/ LPDDR3	16GB+24Gb	11.5x13x1.2	221Ball
KMR31000BA-B614	eMCP eMMC 5.0/ LPDDR3	16GB+24Gb	11.5x13x1.0	221Ball
KMR310001M-B611	eMCP eMMC 5.0/ LPDDR3	16GB+16Gb	11.5x13x1.2	221Ball
KMR21000BM-B809	eMCP eMMC 5.0/ LPDDR3	32GB+24Gb	11.5x13x1.1	221Ball
KMQX60013A-B419 8953-12x14	eMCP eMMC 5.1/ LPDDR3	32GB+16Gb	11.5x13.0x1.0	221Ball
KMQX60013A-B419	eMCP eMMC 5.1/ LPDDR3	32GB+16Gb	11.5x13.0x1.0	221Ball
KMQX10013M-B419	eMCP eMMC 5.1/ LPDDR3	32GB+16Gb	11.5x13.0x1.0	221Ball
KMQN10013M-B318	eMCP eMMC 5.0/ LPDDR3	8GB+16Gb	11.5x13x1.0	221Ball
KMQN1000SM-B316	eMCP eMMC 5.0/ LPDDR3	8GB+8Gb	11.5x13x1.0	221Ball
KMQN10006M-B318	eMCP eMMC 5.0/ LPDDR3	8GB+12Gb	11.5x13x1.0	221Ball
KMQE60013M-B318 8953-12x14	eMCP eMMC 5.1/ LPDDR3	16GB+16Gb	11.5x13.0x1.0	221Ball
KMQE60013M-B318	eMCP eMMC 5.1/ LPDDR3	16GB+16Gb	11.5x13.0x1.0	221Ball
KMQE60013B-B318 8953-12x14	eMCP eMMC 5.1/ LPDDR3	16GB+16Gb	11.5x13.0x1.0	221Ball
KMQE60013B-B318	eMCP eMMC 5.1/ LPDDR3	16GB+16Gb	11.5x13.0x1.0	221Ball
KMQE10013M-B318	eMCP eMMC 5.1/ LPDDR3	16GB+16Gb	11.5x13.0x1.0	221Ball
KMQD60013M-B318 8953-12x14	eMCP eMMC 5.1/ LPDDR3	32GB+16Gb	11.5x13.0x1.0	221Ball
KMQD60013M-B318	eMCP eMMC 5.1/ LPDDR3	32GB+16Gb	11.5x13.0x1.0	221Ball
KMQ8X000SA-B414	eMCP eMMC 5.0/ LPDDR3	16GB+8Gb	11.5x13x1.0	221Ball
KMQ820013M-B419	eMCP eMMC 5.0/ LPDDR3	16GB+16Gb	11.5x13x1.0	221Ball
KMQ82000SM-B418	eMCP eMMC 5.0/ LPDDR3	16GB+8Gb	11.5x13x1.0	221Ball
KMQ7X000SA-B315	eMCP eMMC 5.0/ LPDDR3	8GB+8Gb	11.5x13x1.0	221Ball
KMQ72000SM-B316	eMCP eMMC 5.0/ LPDDR3	8GB+8Gb	11.5x13x1.0	221Ball
KMQ5X000SA-B315	eMCP eMMC 5.0/ LPDDR3	4GB+8Gb	11.5x13x1.0	221Ball
KMQ4Z0013M-B809	eMCP eMMC 5.0/ LPDDR3	32GB+16Gb	11.5x13x1.0	221Ball
KMQ310013M-B419	eMCP eMMC 5.0/ LPDDR3	16GB+16Gb	11.5x13x1.0	221Ball
KMQ310013A-B419	eMCP eMMC 5.1/ LPDDR3	16GB+16Gb	11.5x13x1.0	221Ball
KMQ31000SM-B417	eMCP eMMC 5.0/ LPDDR3	16GB+8Gb	11.5x13x1.0	221Ball
KMQ310006M-B417	eMCP eMMC 5.0/ LPDDR3	16GB+12Gb	11.5x13x1.0	221Ball
KMQ310006A-B419	eMCP eMMC 5.0/ LPDDR3	16GB+12Gb	11.5x13x1.0	221Ball
KMNJS000ZM-B205	eMCP eMMC 4.41/LPDDR2	4GB+4Gb	11.5x13x1.0	162Ball
KMN9X000RM-B209	eMCP eMMC 4.41/LPDDR2	2GB+2Gb	11.5x13x1.0	162Ball
KMN5X000ZM-B209	eMCP eMMC 5.0/LPDDR2	4GB+4Gb	11.5x13x1.0	162Ball
KMN5W000ZM-B207	eMCP eMMC 4.51/LPDDR2	4GB+4Gb	11.5x13x1.0	162Ball
KMN5U000ZM-B203	eMCP eMMC 4.41/LPDDR2	4GB+4Gb	11.5x13x1.0	162Ball
KML5U000HM-B505	eMCP eMMC 4.41/LPDDR1	4GB+8Gb	11.5x13x1.2	153Ball
KMKJS000VM-B309	eMCP eMMC 4.41/LPDDR2	4GB+8Gb	11.5x13x1.0	162Ball
KMK7X000VM-B314	eMCP eMMC 5.0/LPDDR2	8GB+8Gb	11.5x13x1.0	162Ball
KMK5X000VM-B314	eMCP eMMC 5.0/LPDDR2	4GB+8Gb	11.5x13x1.0	162Ball
KMK5W000VM-B312	eMCP eMMC 4.51/LPDDR2	4GB+8Gb	11.5x13x1.0	162Ball
KMK5U000VM-B309	eMCP eMMC 4.41/LPDDR2	4GB+8Gb	11.5x13x1.0	162Ball
KMJS9001RM-BG01	uMCP5/UFS3.1+LPDDR5	256GB+96Gb	11.5x13.0x1.3	297Ball
KMJJS000WM-B409	eMCP eMMC 4.41/LPDDR1	4GB+6Gb	11.5x13x1.2	153Ball
KMJJS000WA-B409	eMCP eMMC 4.41/LPDDR1	4GB+6Gb	11.5x13x1.2	153Ball
KMJIA001RM-BC07	uMCP5/UFS3.1+LPDDR5	256GB+96Gb	11.5x13.0x1.2	297Ball
KMJ5X000WM-B413	eMCP eMMC 4.41/LPDDR1	4GB+6Gb	11.5x13x0.9	153Ball
KMJ5U000WA-B409	eMCP eMMC 4.41/LPDDR1	4GB+6Gb	11.5x13x1.2	153Ball
KMGX6001BM-B514 8953-12x14	eMCP eMMC 5.1/ LPDDR3	32GB+24Gb	11.5x13.0x1.0	221Ball
KMGX6001BM-B514	eMCP eMMC 5.1/ LPDDR3	32GB+24Gb	11.5x13.0x1.0	221Ball
KMGX6001BA-B514-8953-12x14	eMCP eMMC 5.1/ LPDDR3	32GB+24Gb	11.5x13.0x1.0	221Ball
KMGX6001BA-B514	eMCP eMMC 5.1/ LPDDR3	32GB+24Gb	11.5x13.0x1.0	221Ball
KMGP6001BM-B514 8953-12x14	eMCP eMMC 5.1/ LPDDR3	64GB+24Gb	11.5x13.0x1.2	221Ball
KMGP6001BM-B514	eMCP eMMC 5.1/ LPDDR3	64GB+24Gb	11.5x13.0x1.2	221Ball
KMGP6001BA-B514 8953-12x14	eMCP eMMC 5.1/ LPDDR3	64GB+24Gb	11.5x13.0x1.0	221Ball
KMGP6001BA-B514	eMCP eMMC 5.1/ LPDDR3	64GB+24Gb	11.5x13.0x1.0	221Ball
KMGE6001BM-B421 8953-12x14	eMCP eMMC 5.1/ LPDDR3	16GB+24Gb	11.5x13.0x1.0	221Ball
KMGE6001BM-B421	eMCP eMMC 5.1/ LPDDR3	16GB+24Gb	11.5x13.0x1.1	221Ball
KMGD6001BM-B421 8953-12x14	eMCP eMMC 5.1/ LPDDR3	32GB+24Gb	11.5x13.0x1.0	221Ball
KMGD6001BM-B421	eMCP eMMC 5.1/ LPDDR3	32GB+24Gb	11.5x13.0x1.0	221Ball
KMFNX0012M-B214	eMCP eMMC 5.1/ LPDDR3	8GB+8Gb	11.5x13.0x1.0	221Ball
KMFN60012M-B214 8953-12x14	eMCP eMMC 5.1/ LPDDR3	8GB+8Gb	11.5x13.0x1.0	221Ball
KMFN60012M-B214	eMCP eMMC 5.1/ LPDDR3	8GB+8Gb	11.5x13.0x1.0	221Ball
KMFN60012B-B214	eMCP eMMC 5.1/ LPDDR3	8GB+8Gb	11.5x13.0x1.0	221Ball
KMFN10012M-B214	eMCP eMMC 5.0/ LPDDR3	8GB+8Gb	11.5x13x1.0	221Ball
KMFJ20005A-B213	eMCP eMMC 5.0/ LPDDR3	4GB+4Gb	11.5x13x1.0	221Ball
KMFE60012M-B214 8953-12x14	eMCP eMMC 5.1/ LPDDR3	16GB+8Gb	11.5x13.0x1.0	221Ball
KMFE60012M-B214	eMCP eMMC 5.1/ LPDDR3	16GB+8Gb	11.5x13.0x1.0	221Ball
KMF820012M-B305	eMCP eMMC 5.0/ LPDDR3	16GB+8Gb	11.5x13x1.0	221Ball
KMF720012M-B214	eMCP eMMC 5.0/ LPDDR3	8GB+8Gb	11.5x13x1.0	221Ball
KMF5X0005C-B211	eMCP eMMC 5.0/ LPDDR3	4GB+4Gb	11.5x13x1.0	221Ball
KMF310012M-B305	eMCP eMMC 5.0/ LPDDR3	16GB+8Gb	11.5x13x1.0	221Ball
KMDX6001DM-B422	eMCP eMMC 5.1/LPDDR4x	32GB+32Gb	11.5x13.0x1.0	254Ball
KMDX60018M-B425	eMCP eMMC 5.1/LPDDR4x	32GB+24Gb	11.5x13.0x1.0	254Ball
KMDV6001DM-B620	eMCP eMMC 5.1/LPDDR4x	128GB+32Gb	11.5x13.0x1.0	254Ball
KMDV6001DA-B620	eMCP eMMC 5.1/LPDDR4x	128GB+32Gb	11.5x13.0x1.0	245Ball
KMDT6001FM-A625	ePOP eMMC 5.1/LPDDR4X	16GB+12Gb	8.0x9.5x0.94	144Ball
KMDT6000HM-A625	ePOP eMMC 5.1/LPDDR4X	16GB+24Gb	8.0x9.5x1.12	144Ball
KMDP6001DB-B425	eMCP eMMC 5.1/LPDDR4x	64GB+32Gb	11.5x13.0x1.0	254Ball
KMDP6001DA-B425	eMCP eMMC 5.1/LPDDR4x	64GB+32Gb	11.5x13.0x1.0	254Ball
KMDP60018M-B425	eMCP eMMC 5.1/LPDDR4x	64GB+24Gb	11.5x13.0x1.0	254Ball
KMDH6001DM-B422	eMCP eMMC 5.1/LPDDR4x	64GB+32Gb	11.5x13.0x1.0	254Ball
KMDH6001DA-B422	eMCP eMMC 5.1/LPDDR4x	64GB+32Gb	11.5x13.0x1.0	254Ball
KMDD6001DM-B320	eMCP eMMC 5.1/LPDDR4x	32GB+32Gb	11.5x13.0x1.0	254Ball
KMDD60018M-B320	eMCP eMMC 5.1/LPDDR4x	32GB+24Gb	11.5x13.0x1.0	254Ball
KMAS9001PM-BC02	uMCP5/UFS3.1+LPDDR5	256GB+64Gb	11.5x13.0x1.2	297Ball
KMAG9001QM-B814	uMCP5/UFS3.1+LPDDR5	128GB+48Gb	11.5x13.0x1.2	254Ball
KMAG9001PM-B814	uMCP5/UFS3.1+LPDDR5	128GB+64Gb	11.5x13.0x1.2	297Ball
KM8V9001JM-B813	uMCP UFS/LPDDR4x	128GB+64Gb	11.5x13.0x1.2	254Ball
KM8V8001JM-B813-FW:P27	uMCP2.2 UFS/LPDDR4x	128GB+8GB	11.5x13x1.2	254
KM8V8001JM-B813	uMCP UFS/LPDDR4x	128GB+64Gb	11.5x13.0x1.2	254Ball
KM8V7001JM-B810	uMCP UFS/LPDDR4x	128GB+64Gb	11.5x13.0x1.3	254Ball
KM8V7001JA-B813	uMCP UFS/LPDDR4x	128GB+64Gb	11.5x13.0x1.2	254Ball
KM8L9001JM-B624	uMCP2.2 UFS/LPDDR4x	128GB+64Gb	11.5x13.0x1.2	254Ball
KM8L9001JA-B624	uMCP2.2 UFS/LPDDR4x	128GB+64Gb	11.0x13.0x1.1	254Ball
KM8F9001MM-B830	uMCP2.2 UFS/LPDDR4x	256+96	11.5x13.0x1.25	254Ball
KM8F9001JM-B813	uMCP UFS/LPDDR4x	256GB+64Gb	11.5x13.0x1.2	254Ball
KM8F9001JA-B816	uMCP2.2 UFS/LPDDR4x	256GB+64Gb	11.5x13.0x1.1	254Ball
KM8F8001MM-B813	uMCP UFS/LPDDR4x	256GB+96Gb	11.5x13.0x1.3	254Ball
KM8F8001JM-B813	uMCP UFS/LPDDR4x	256GB+64Gb	11.5x13.0x1.2	254Ball
KM8F8001JA-B813	uMCP2.2 UFS/LPDDR4x	256GB+64Gb	11.5x13.0x1.2	254Ball
KM8B8001JM-BC01	uMCP UFS/LPDDR4x	256GB+64Gb	11.5x13.0x1.3	254Ball
KM81A001MM-BC11	uMCP2.2 UFS/LPDDR4x	512+12	11.5x13x1.25	254b
KM5V8001DM-B622	uMCP UFS/LPDDR4x	128GB+32Gb	11.5x13.0x1.2	254Ball
KM5V7001DM-B621	uMCP UFS/LPDDR4x	128GB+32Gb	11.5x13.0x1.2	254Ball
KM5P9001DM-B424	uMCP UFS/LPDDR4x	64GB+32Gb	11.5x13.0x1.0	254Ball
KM5P8001DM-B424	uMCP UFS/LPDDR4x	64GB+32Gb	11.5x13.0x1.0	254Ball
KM5L9001DM-B424	uMCP2.2 UFS/LPDDR4x	128GB+32Gb	11.5x13.0x1.0	254Ball
KM5L9000CM-B424	uMCP2.2 UFS/LPDDR4x	128GB+48Gb	11.5x13.0x1.0	254Ball
KM5H80018M-B424	uMCP UFS/LPDDR4x	64GB+24Gb	11.5x13.0x1.2	254Ball
KM5H7001DM-B424	uMCP UFS/LPDDR4x	64GB+32Gb	11.5x13.0x1.2	254Ball
KM5C7001DM-B622	uMCP UFS/LPDDR4x	64GB+32Gb	11.5x13.0x1.2	254Ball
KM4X6001KM-B321	eMCP eMMC 5.1/LPDDR4x	32GB+16Gb	11.5x13.0x1.0	254Ball
KM4R6001NM-A321	ePOP eMMC 5.1/LPDDR3	8GB+8Gb	8.0x9.5x0.78	144Ball
KM3V6001CM-B705	eMCP eMMC 5.1/LPDDR4x	128GB+48Gb	11.5x13.0x1.05	254Ball
KM3V6001CA-B708	eMCP eMMC 5.1/LPDDR4x	128GB+48Gb	11.5x13.0x1.0	254Ball
KM3P6001CM-B517	eMCP eMMC 5.1/LPDDR4x	64GB+48Gb	11.5x13.0x1.0	254Ball
KM3H6001CM-B515	eMCP eMMC 5.1/LPDDR4x	64GB+48Gb	11.5x13.0x1.0	254Ball
KM3H6001CA-B515	eMCP eMMC 5.1/LPDDR4x	64GB+48Gb	11.5x13.0x1.0	254Ball
KM2V8001CM-B707	uMCP UFS/LPDDR4x	128GB+48Gb	11.5x13.0x1.2	254Ball
KM2V7001CM-B706	uMCP UFS/LPDDR4x	128GB+48Gb	11.5x13.0x1.2	254Ball
KM2P9001CM-B518	uMCP2.2 UFS/LPDDR4x	64GB+48Gb	11.5x13.0x1.0	254Ball
KM2P8001CM-B518	uMCP UFS/LPDDR4x	64GB+48Gb	11.5x13.0x1.0	254Ball
KM2L9001CM-B518	uMCP2.2 UFS/LPDDR4x	128GB+48Gb	11.5x13.0x1.1	254Ball
KM2H7001CM-B518	uMCP UFS/LPDDR4x	64GB+48Gb	11.5x13.0x1.2	254Ball
KM2B8001CM-BB01	uMCP UFS/LPDDR4x	256GB+48Gb	11.5x13.0x1.3	254Ball

询价、找货、处理库存、找规格书、了解市场行情、扫码添加微信

推荐阅读

MTK、高通、紫光展锐手机SOC平台型号对比汇总(含详细参数，更新至2023年2月份）

MTK联发科网通WiFi芯片汇总及详细参数更新至2024年11月

DDR4持续减产/停产，DDR4内存价格走势以及后续供应情况分析-存储大厂Roadmap

车规级存储、工业级存储、消费级存储详细对比

半导体存储器分类介绍 -NAND篇-详细参数对比及最新Roadmap

半导体存储器分类介绍 -DRAM篇-详细参数对比及最新Roadmap

MT8765、MT8766、MT8768、MT8788性能参数详细对比

MTK联发科平板、IoT平台SOC型号对照表含详细参数-更新至2024年11月

MTK联发科手机SOC平台型号对照表含详细参数-更新至2024年11月

MTK联发科5G旗舰SOC平台详解-更新至2024年10月08日

MediaTek 联发科天玑 9000 系列移动平台详细参数对比

天玑9000（MT6983）Memory AVL以及PoP封装介绍

G99 (MT6789)平台Memory AVL

一文看懂NAND、eMMC、UFS、eMCP、uMCP、DDR、LPDDR及存储器和内存区别

SK hynix海力士DDR、LPDDR、UFS、eMMC、eMCP、uMCP规格型号参数对照表

三星内存eMCP、UMCP、eMMC、LPDDR、DDR型号参数对照表

消费级、工业级、汽车级、军工级、航天级芯片区别对比

全球前五大存储厂商产品介绍Roadmap及代理商信息

KIOXIA 铠侠UFS、eMMC、NAND型号参数对照表

全球移动通信射频前端厂商汇总（含晶圆、封测）

全球80家无线通信模组企业汇总及介绍

温馨提示：

建议点击“点赞、在看、收藏”，成为常读用户，第一时间获取行业最新动态。

欢迎把“芯存社”公众号设为★星标以便及时收到推送消息。

欢迎留言探讨，多多交流，多提建议。

如您觉得内容不错，欢迎转发分享，谢谢您~

登录阅读全文



免责声明：该内容由专栏作者授权发布或作者转载，目的在于传递更多信息，并不代表本网赞同其观点，本站亦不保证或承诺内容真实性等。若内容或图片侵犯您的权益，请及时联系本站删除。侵权投诉联系： nick.zong@aspencore.com！

芯存社移动通信芯片组、存储器、射频前端。

进入专栏

芯存社移动通信芯片组、存储器、射频前端。

文章：454篇粉丝：35人

 私信

三星eMCP、uMCP存储芯片对照表-含详细参数和产品状态-更新至2025年6月

【7.24 深圳】2025国际AI+IoT生态发展大会/2025全球 MCU及嵌入式技术论坛

最近文章

热门文章

推荐

最新资讯
